An easy route to more horsepower...

...Is to fit a free-flowing exhaust system. The stock Jeep Cherokee 4.0 exhaust is very restrictive. Much of that restriction is in the crushed stock front exhaust pipe (it necks down from 2.25" to as little as 1.75" in diameter at the bends) and the stock catalytic converter.
The best solution is to replace THE WHOLE EXHAUST SYSTEM with a tubular header/front pipe, high-flow catalytic converter, and a high-flow muffler with tailpipe (cat-back).
The result is a gain of 15-20hp.

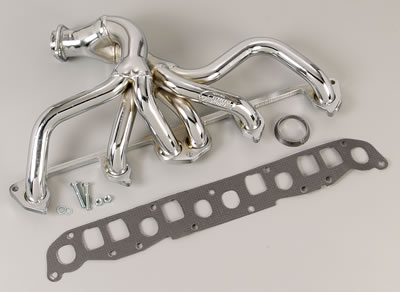

Headers


Borla and Mike Leach headers have been discontinued.

Doug Thorley headers are now only available for '00-'06 4.0L Jeep models with dual precats (part no. HDX-635)

Edelbrock have produced a new shorty header that fits '91-'99 4.0L Jeep models (part no. EDL-65923). Edelbrock shorty headers feature mandrel-bent tubes, laser-cut or die-stamped flanges, and a black painted or glossy nickel/chrome plated finish for great looks. They're direct replacements for the stock manifolds, and they're easy to install using the factory crossover pipe. Best of all, Edelbrock shorty headers are 50-state legal under CARB E.O. #D-215-45.

Gibson Performance Exhaust also produce shorty smog-legal, heavy duty headers with the options of chrome plating, stainless steel, or ceramic-coated stainless steel.
Mandrel Bent Tubing
Heavy Duty 3/8 in. Thick Laser Cut Port Flanges
Premium Gaskets and Hardware
No Welding Required
Uses OEM Style Connections

Clifford Performance 57-2015 "6=8 HEADERS" Jeep Headers 1987-2005 w/ 242 cid (4.0L).
Fitment: All 1987-2005 Jeeps 242 cid (4.0L). Includes smog fittings. Description: This is a shorty street rod header which includes the header gasket and street hookup kit. Average gains on a stock engine are 18-22% when bolting on this header. By seperating the heat created by the engine in to two collectors, we can increase the life of the engine and make more power with exhaust scavenging. Want to use a single exhaust? Use our universal -Y- Pipe (09-0240) to single out the exhaust to bolt to your stock exhaust system.

Banks Torque Tube Exhaust Manifold Assembly.
4.0L 6-CYL: 1991-06 WRANGLER, 1991-01 CHEROKEE, '93-01 GRAND CHEROKEE, 1991-92 COMANCHE: Banks TorqueTube is a streamlined exhaust manifold designed to optimize exhaust flow and engine efficiency. Because the stock manifold's flange does not align squarely with the ports, flow is restricted. TorqueTube corrects the problem with a half-inch flange that is machined dead flat, and precisely fitted to the port pattern. You can hear the difference in the plusher, healthier exhaust note.
Unlike the stock, failure-prone exhaust manifold, Banks TorqueTube is built of heavy, 409 stainless steel to weather a lifetime of heat, stress and abuse. The flange, welded to the tube assembly on both sides, will never crack or separate. The gasket is made of SMI 900, a material that stands up to super-hot temperatures.
Bolts right on!
Stainless, constant-diameter head-pipe assembly available for the best flow ('91-95 Wrangler only).
Includes: Stainless TorqueTube exhaust manifold assembly with mandrel-bent primary tubes, seamless Y-collectors and flange; Gasket; Mounting hardware.

High-flow cats

Carsound Direct-Fit and Universal Catalytic Converters are designed for durability and performance. Car Sound converters feature ribbed bodys, 1/2 inch lap-joints (where the neck meets the body), heavy guage stainless steel, and seam welds along the case; all for extra strength. Internally Car Sound uses a high flow monolithic honeycomb catalyst. The ceramic is designed for maximum flow and surface area. The coating method is controlled to maintain exact specifications. An improper coating could result in flow restrictons or an emission test failure. The end result is a heavy duty, street legal converter with the highest flow possible. Don't forget it is not legal to replace a catalytic converter until it has reached 5 years or 50,000 miles, or if it has failed.

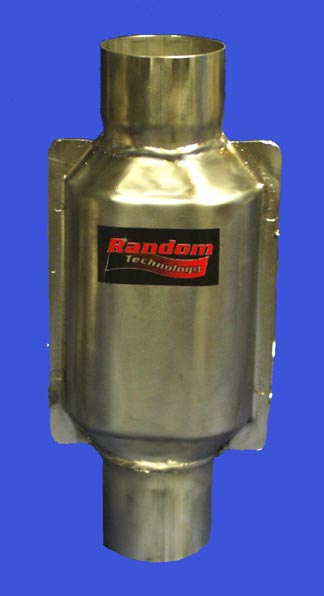

Random Technology Super High Flow catalytic converters. (Direct-fit, bolt-in Super High Flow converters are available for most vehicles. Check the application charts for specific part numbers.)
Cat-back systems

Borla Aircraft Quality T304 Stainless Steel Cat-Back Exhaust Systems With Polished Stainless Tip(s)
Rear Exit Cat-Back System With Square Angle Cut Intercooled Tip
Borla Performance Industries catalytic converter back T-304 stainless steel systems are made for race, street, and off-road. Systems include a full welded case high-flow muffler, mandrel bent tubing, and polished stainless steel tip(s).

Gibson Performance Cat-Back Stainless and Aluminized Exhaust Systems for Most Domestic and Some Import Model Trucks and SUV's. A Variety of exit locations.
Single 2 1/2inch Aluminized Steel Cat Back Exhaust System
Larger tubing and a high-flow muffler allow your engine to breathe easier creating an increase in power as well as mileage! Limited Lifetime Warranty.

Rusty's Offroad features Flowmaster Delta Flow & Cherry Bomb Pro Mufflers. Many people ask us why Flowmaster & Cherry Bomb Pro Mufflers? Well their performance is proven and there is no other muffler that will hold up to the elements of off roading, they are built like skid plates and hold up to the beating of rocks and stumps. The Rusty’s mandrel bent 2.5 inch tail pipe keeps the exhaust flowing for maximum horse power, improved fuel economy and a performance tone. Mandrel bends offer 35 to 40% increase in flow compared to stock bent pipes. Mufflers and pipes are completely aluminized. System comes complete with heavy duty exhaust clamps.
Will work with both 4.0 & 2.5 engines. * 01 models require cutting of muffler flange. Cut on the muffler side of the flange where muffler is welded, about 2.5" behind flange. Then slide the muffler onto the 2.5" extension.
These kits will work on U.K. versions of the XJ as well.

Turbo City 2 1/2" diameter mandrel bent aluminized mild steel exhaust system designed and built in-house by ROCK-IT PARTS. Utilizes MAGNAFLOW muffler with a straight thru flow design. This muffler was selected to produce the most power and it has the best sound. It's quite at cruising speeds, but lets you know it is a performance exhaust when required and it does not produce the undesirable resonance inside the vehicle. Easy install and a limited lifetime warranty. Tip exits in the stock location and is turned down like stock to keep exhaust off the back of your Jeep. Fits '91-'99, Cherokee Sports, Classics, and Limited.
High-flow mufflers

"FLOWMASTER MUFFLERS and exhaust systems deliver unequaled performance no matter what you drive"

Flowmaster

Dynomax offers the widest selection of performance mufflers on the market. With a muffler for every performance application, Dynomax has it all: sound, performance and durability.

Magnaflow universal fit mufflers
Options galore! Aluminized or stainless, singles or duals, oval or round, with or without tips. The one stop for all the mufflers, tips and converters you need.
